F-Series RGBW Round Fixture

High-output submersible luminaire with intelligent Full Spectrum RGBW LED’s

"The F-Series line of underwater marine lighting fixtures is designed to mounted a depth of up to 4.6m (15 ft) below the water’s surface to provide vibrant color and color-changing light in the water.
With watertight aluminum bronze housings and silicon bronze hardware, Metro Marine’s F-Series luminaires are perfect for marine-based applications such as mounting to yachts, docks, sea walls, as well as for use in fountains and theme park installations..
Leveraging Metro’s rich legacy of innovation and leadership in optics & LED control technology, the F-Series underwater lighting fixtures introduce a unique LED array to the market with 72 H.O. LEDs per fixture, allowing close adjacent fixture placement where fully-mixed, uniform light is important.
Our F-Series RGBW Luminaires also integrate a separate white LED in each of the 18 individually optically lensed RGBW LED configurations, creating higher-quality whites and richer color blends than possible with traditional RGB+White fixtures.

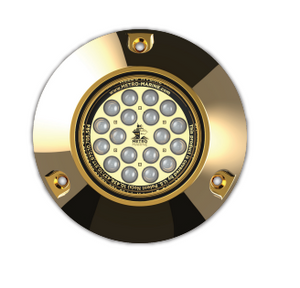

The F-BMR1-FS-45 is a superior underwater RGBW LED luminaire with 45° optical lensing for lighting mid- to large-scale structures and yachts ranging from 10 m (32 ft) to 30 m (100 ft), with uniform color control, and high efficiency.

SECIFICATIONS
Due to continuous improvements and innovations, specifications may change without notice.
Output
Beam Angle: 45°
Lumens All Channels Full On:
Lumens per channel: R 290lm / G 1983lm / B 268lm / W 2252lm
Lumens (Maximum): 4212 lm
Efficiency (lm/W): Maximum 50 lm/W
LED Channels: Red/Green/Blue/6500 K
Electrical
Input Voltage: 10 to 30 VDC
Power Consumption: 86 W (Maximum at full output, steady state)
Control
Interface: Control Center MM-CC-V1
Lumen Maintenance
Threshold Ambient Temperature Reported Calculated
L50 25 °C > 66,000 > 100,000 50 °C > 66,000 > 100,000
Physical
Dimensions: Ø: 139.13mm(5.47") D: 28.60mm(1.12")
Weight: 1.61 kg (3.54 lb)
Housing Material: Die-cast marine aluminum bronze, polished finish
Lens: Clear Quartz
Luminaire Connections: Integral male/female IP68 connectors.
Temperature Ranges
-40 to 50 °C (-40 to 122 °F) Operating
-20 to 50 °C (-4 to 122 °F) Startup
-40 to 80 °C (-40 to 176 °F) Storage
